GitHub Integration

Link a Splice design — either a plan (Project Workflow) or an assembly (Harness Builder) — to a GitHub repo. Splice commits the design JSON plus a render workflow, and every push to the design file (or a manual workflow run) auto-produces PDFs, PNGs, SVGs, BOMs, and other exports. Rendered outputs are committed back to the repo and uploaded as workflow artifacts.

One action image (splice-cad/plan-export-action) handles both design types. You can use it three ways:

1. In-app link + push — Splice manages the commit for you (recommended for most users).
2. Manual upload to GitHub — skip the link, commit JSON + workflow to your own repo by hand.
3. Run the action locally — render JSON to PDF/PNG/etc. without GitHub at all.

1. In-app link + push

Linking a design

1. Open the plan or assembly in Splice.
2. In the top toolbar (or the row menu on the home page), click the GitHub icon.

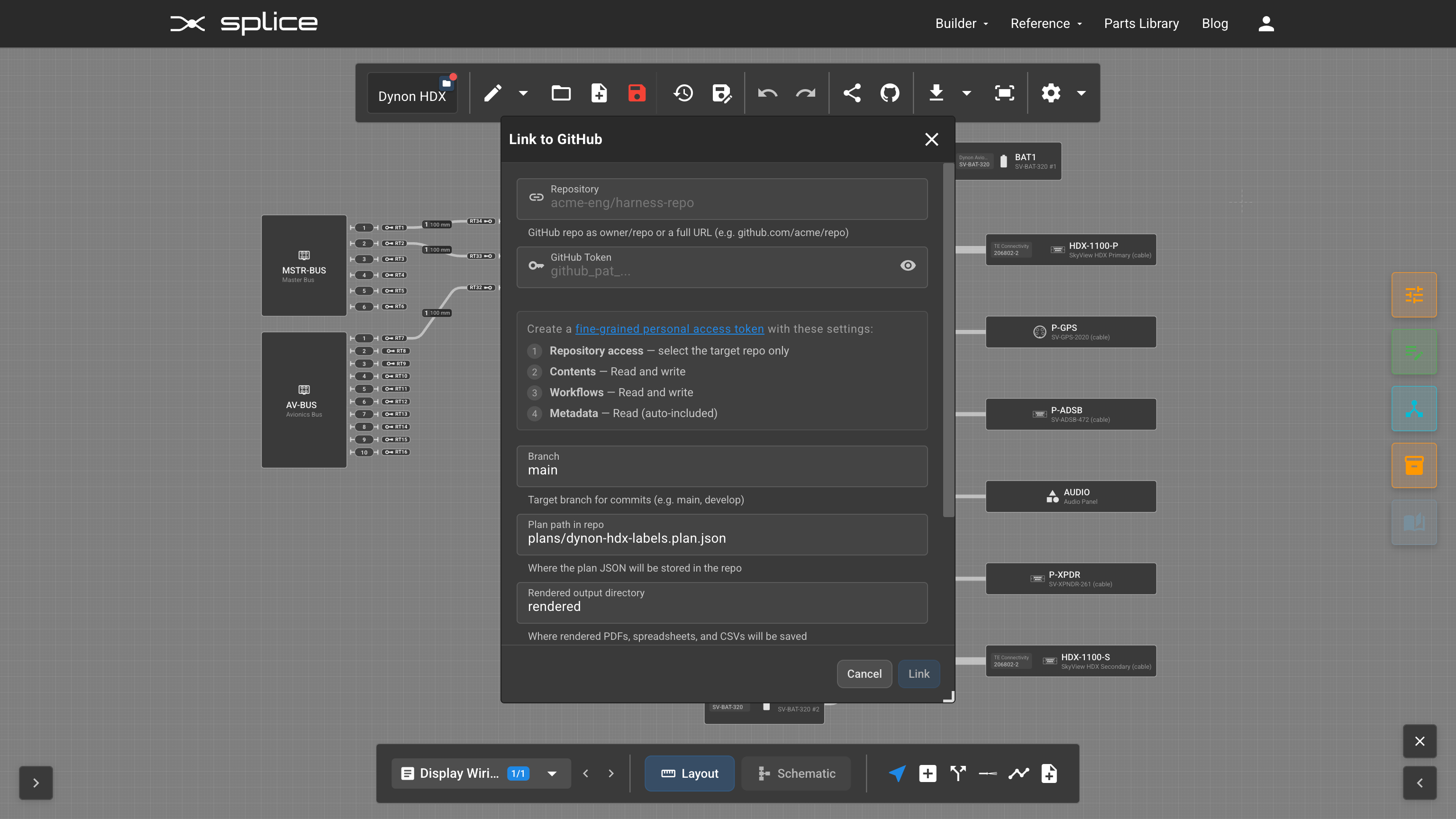

3. Fill out the dialog:

4. Click Link. Splice validates the token, encrypts + stores it, and the toolbar button becomes a GitHub menu.

Pushing

GitHub → Push to GitHub commits three files to the repo:

1. The design JSON at the configured path. This matches the shape of Download JSON from Harness Builder (or the plan Export menu) — fully-hydrated BOM with .part expanded on every entry.
2. splice.yml — the render config (design type, export targets, output directory).
3. A workflow file — .github/workflows/render.yml for plans, .github/workflows/render-harness.yml for assemblies. Only created if one doesn’t already exist, so a plan and an assembly can coexist in the same repo without clashing.

On every subsequent push to the design file (from Splice or directly), the render workflow fires, produces the artifacts, and commits them back to the configured output directory. Outputs are also uploaded as workflow artifacts.

Editing + unlinking

GitHub → Edit Link changes any field (repo, branch, path, export targets, token) without re-committing files. GitHub → Unlink removes the Splice-side link; files already in the repo are left untouched.

2. Manual upload to GitHub (no in-app link)

If you’d rather manage the repo yourself — e.g. the repo already has its own workflow scaffolding, or you don’t want to paste a PAT into Splice — you can skip the link dialog entirely.

1. From Harness Builder: Download & Upload → Download JSON. From a plan: Export → Download Plan JSON. Save it to your repo (e.g. schematics/my-harness_schema.json or plans/my-harness.plan.json).
2. Add a splice.yml next to it (or at repo root) — see examples below.
3. Add a workflow at .github/workflows/render.yml:

name: Render splice design

on:
  push:
    paths:
      - 'schematics/**'      # adjust to match your design path
      - 'splice.yml'
      - '.github/workflows/render.yml'
  workflow_dispatch:

permissions:
  contents: write

jobs:
  render:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      - uses: splice-cad/plan-export-action@v0
        # Point at the splice.yml if not at repo root:
        # with:
        #   config: schematics/splice.yml

      - uses: actions/upload-artifact@v4
        with:
          name: rendered
          path: rendered/
          if-no-files-found: error

4. Commit and push. The action pulls ghcr.io/splice-cad/plan-export-action:v0, renders the design, and uploads the output directory as a workflow artifact.

The committed JSON is the source of truth — update it by re-downloading from Splice and committing the new file. No PAT is required on the Splice side because Splice never touches your repo.

3. Run the action locally

The same Docker image that runs in the GitHub workflow can render a design on your own machine.

One-off render

# Stage the JSON + a splice.yml in a workspace dir
mkdir -p /tmp/render/schematics /tmp/render/rendered
cp my-harness_schema.json /tmp/render/schematics/
cat > /tmp/render/schematics/splice.yml <<'YML'
design:
  type: harness
  design-path: schematics/my-harness_schema.json
exports:
  formats:
    - schematic-pdf
    - physical-all-pages-pdf
    - bom-csv
  output-dir: rendered
YML

# Run the action against that workspace
docker run --rm \
  -v /tmp/render:/github/workspace \
  -e INPUT_CONFIG=schematics/splice.yml \
  ghcr.io/splice-cad/plan-export-action:v0

# Outputs land in /tmp/render/rendered/
ls /tmp/render/rendered/

For a plan, drop design.type: harness and point design.design-path at the .plan.json.

Useful env vars

Export targets

Plan

See Export & Import for full plan export details.

Assembly

Physical targets silently skip if the assembly has no physical layout configured. See PDF Export Options for in-app export details.

The splice.yml config

Plan

design:
  plan-path: plans/my-harness.plan.json

exports:
  formats:
    - all-pages-pdf
    - bom-xlsx
    - bom-csv
    - connection-table-xlsx
  output-dir: rendered

Assembly

design:
  type: harness
  design-path: schematics/my-harness_schema.json

exports:
  formats:
    - schematic-pdf
    - schematic-png
    - physical-all-pages-pdf
    - bom-xlsx
    - bom-csv
  output-dir: schematics/rendered

You can edit splice.yml in the repo directly — add or remove targets without re-linking. The next push will respect the new config.

Troubleshooting

• “Repo not found” or 403 during link: the PAT lacks access to the repo, or is scoped to the wrong owner. Double-check the PAT repository access list.
• Workflow doesn’t run after push: check GitHub Actions is enabled (Repo Settings → Actions → General), and that the PAT’s Workflows permission is set to Read and write. Without the Workflows permission, the workflow-file commit silently fails.
• “Unknown export target” in the workflow log: the render action image is older than the target. The image floats via the @v0 tag; wait for the latest Splice release to propagate, or pin to a specific version (e.g. @v0.3.0) in the workflow file.
• Need to regenerate the workflow: delete the workflow file from the repo (.github/workflows/render.yml or render-harness.yml) and push from Splice again — a fresh workflow will be created.

Action reference

The render action is published to GitHub Container Registry at ghcr.io/splice-cad/plan-export-action. Tag convention:

Source code lives at splice-cad/plan-export-action.
